備注：
些套裝不含ZL支架（門與門框垂直）和U型支架（玻璃門），請?jiān)谙聠吻皡⒄瞻惭b圖片，如需要，請?jiān)诘陜?nèi)另購。
套裝清單：
一體門禁主機1個、280KG防水磁力鎖一套、3A電源一個、出門開關一個、ID激光刻碼扣卡5個。
本套門禁適用于木門，鐵門，玻璃門，防火門，安裝簡便，只需有基礎的電工常識即可安裝，比如連接電線正負極、擰螺絲、布電線等基礎工作。
詳細安裝步驟和電路圖在說明書中有描述，如在安裝過程中遇到問題可以隨時聯系本店尋求技術支持！
Notice:
This set don't include ZL bracket and U bracket,please check befor placing order.if needs,please buy its in the store.
Specification:
1.Integrated access control
·Work Voltage:Dc 12V
·Open Lock Current:≤0.1A
·User Capacity: 12,000 users
·Inductive Distance:5～15mm
·Card type:EM/ID
.Frequency:125KHz
·Size:120*78*22mm
·Weight:0.22kg
Function:
·Supporting card,with master card
·Offline work
·Power off data protection function
·Connect to the door bell by wire or wireless with accordance to customer requirement and support the switch for opening the door
.Can connect WG reader
2.Lock control
·Can reduce the access controller’s load, interference, save wiring and reduce failure risks
·Set NC / NO outputs, can control various types of electric locks (+ NO and-3COM electric lock ·pick, even if the long-term power to the electric lock electric lock does not burn)
·based delay control circuit, lock time can be arbitrarily adjusted in the 0-10 seconds
·AC Input: Standard AC220V 50HZ
·Output Voltage: DC 12V,5A
·Size:182*80*70mm
·Set NC / NO outputs, can control various types of electric locks (+ NO and-3COM electric lock ·pick, even if the long-term power to the electric lock electric lock does not burn)
·based delay control circuit, lock time can be arbitrarily adjusted in the 0-10 seconds
·AC Input: Standard AC220V 50HZ
·Output Voltage: DC 12V,5A
·Size:182*80*70mm
3.Magnetic lock
.Waterproof
.Lock Size:250×53×34.3mm
.Suction Force:280kg/600Lsb
.Working Voltage:12V
.Working Current:350mA
.Application:power lock/with Locking Status
Package Included:
.ID access controlx1
.280kg waterproof EM lockx1
.3A power supplyx1
.Exit buttonx1
.Key cardx5

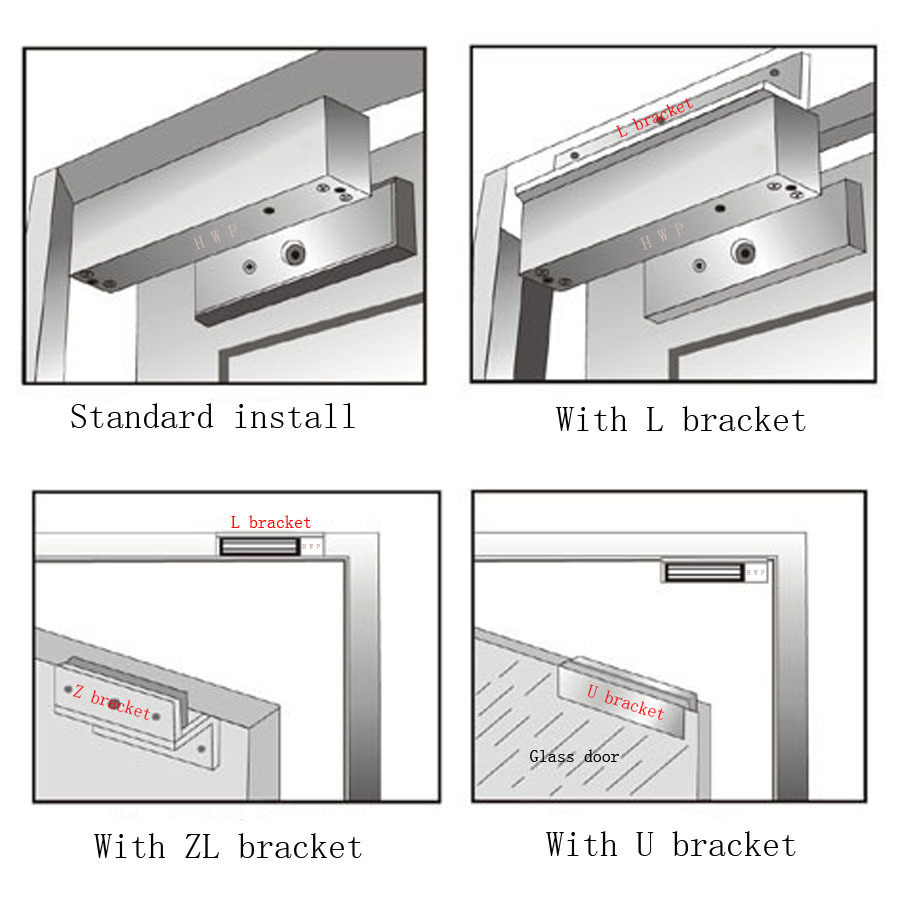

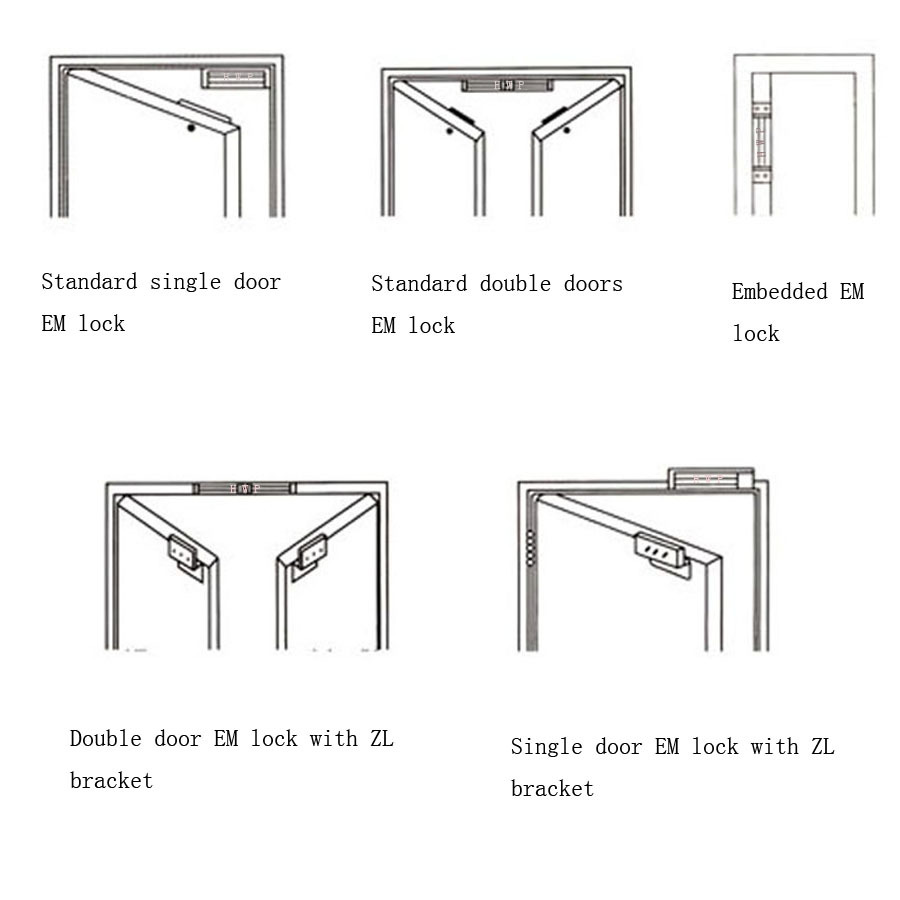

安裝示意圖（Fixing diagram as follow）：
